Plasticity Assessments

Plasticity is a property of soil used by geotechnically engineers to evaluate the suitability of soil for soil classification in construction projects. It can give insight into the behavior of soils under different moisture conditions.

Key Plasticity Tests: Atterberg Limits

The core of plasticity assessment involves determining the Atterberg Limits. These tests, conducted in accordance with Australian Standards (such as AS 1289), define the boundaries between different soil consistency states:

Liquid Limit (LL)

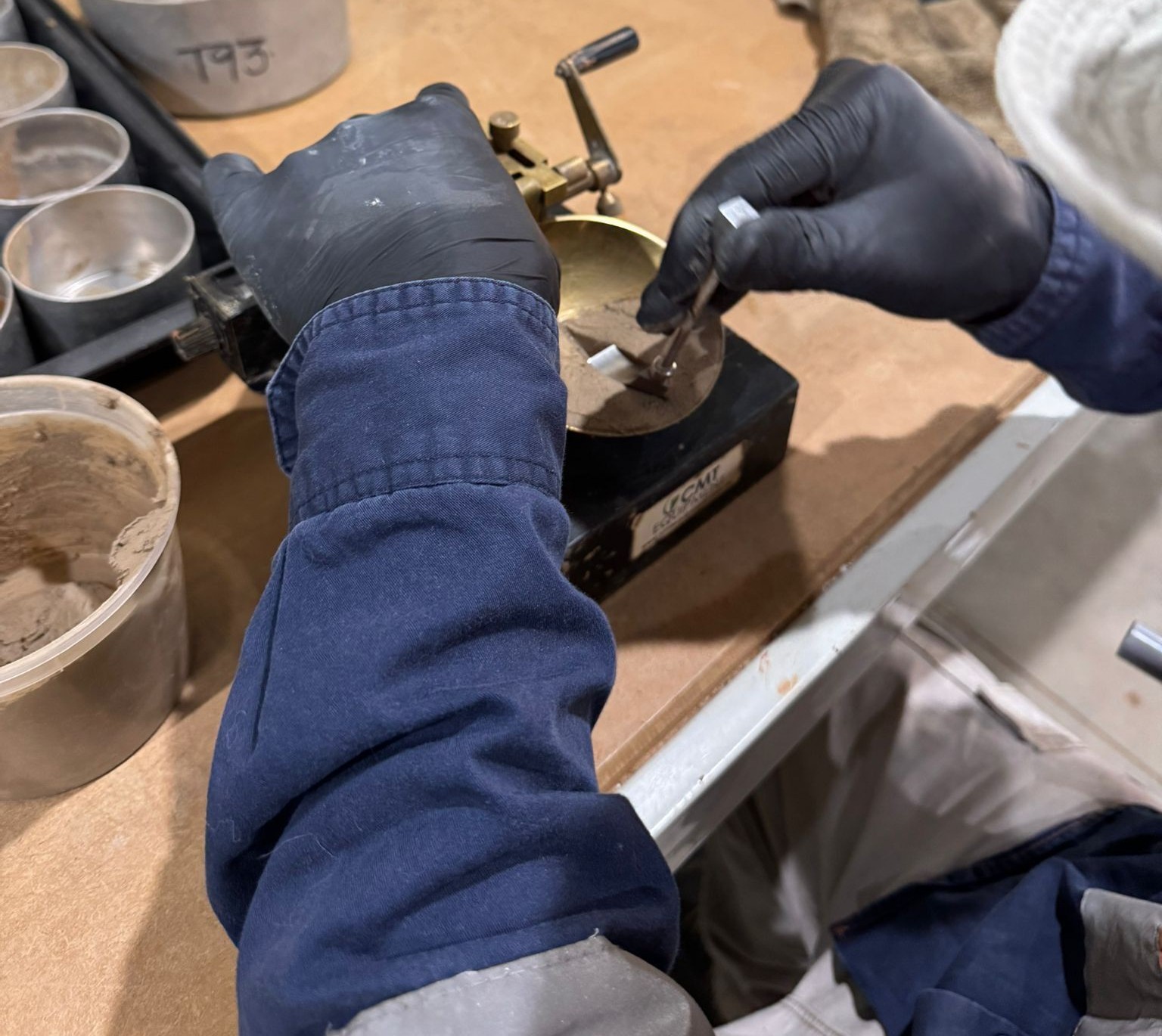

The Liquid Limit is the water content, expressed as a percentage, at which a soil transitions from a plastic to a liquid state. At this point, the soil has minimal shear strength and will flow under its own weight. Determination typically involves methods like the Casagrande cup or the fall cone test.
Plastic Limit (PL)
The Plastic Limit is the water content, expressed as a percentage, at which a soil transitions from semi-solid to plastic. Below the PL, the soil becomes brittle and will crumble when rolled into a thread. This is determined by repeatedly rolling a soil sample into a 3mm diameter thread until it crumbles.
Plasticity Index (PI)
The Plasticity Index is the numerical difference between the
Liquid Limit and the Plastic Limit: ($PI = LL - PL$).
It represents the range of moisture content over which the soil exhibits plastic behaviour. A higher PI generally indicates a more plastic soil, often associated with higher clay content and greater potential for shrink-swell behaviour.
Soils that do not exhibit plastic behaviour are termed 'non-plastic' (NP).

Why are Plasticity Assessments Important?

The data obtained from plasticity assessments is vital for numerous geotechnical and civil engineering applications in Sydney:

Soil Classification: Atterberg Limits are fundamental for classifying fine-grained soils according to the Unified Soil Classification System (USCS) and Australian Standard AS 1726. Proper classification helps predict engineering behaviour.
Predicting Soil Behaviour: The PI and LL help assess a soil's potential for swelling and shrinkage, as well as its compressibility, permeability, and shear strength. This is crucial for evaluating foundation stability and earthwork performance.
Engineering Design: These parameters are essential for designing stable foundations, retaining walls, embankments, pavement subgrades, and managing earthworks. They inform decisions on material suitability and necessary ground improvement techniques.
Construction Quality Control: Plasticity tests are used to verify that soils used in construction (e.g., fill materials, road base) meet the project specifications and design assumptions, ensuring long-term performance and safety.
