Consolidation Testing for Soil & Rock
Atlas Engineering and Technology Group provides NATA-accredited consolidation testing to evaluate the compressibility and settlement characteristics of cohesive soils. Our laboratory in Sydney supports civil, geotechnical and infrastructure projects of every scale.
Consolidation is the gradual reduction in volume of a saturated, fine-grained soil caused by expulsion of pore water under sustained loading. The rate and magnitude of settlement directly influence foundation performance, pavement durability and overall serviceability of structures.
The Importance of Consolidation Testing
Consolidation testing provides vital data for:
- Predicting Settlement: Accurately forecasting the total settlement and the time-rate of settlement of structures built on compressible soils.
- Foundation Design: Enabling engineers to design appropriate foundation systems (e.g., shallow or deep foundations) that can accommodate or mitigate potential settlement.
- Assessing Soil Behaviour: Understanding the soil's past stress history (preconsolidation pressure) and its compressibility under new loading conditions.
- Stability Analysis: Providing parameters for analysing the stability of embankments, slopes, and retaining structures.
Our Consolidation Testing Methodology

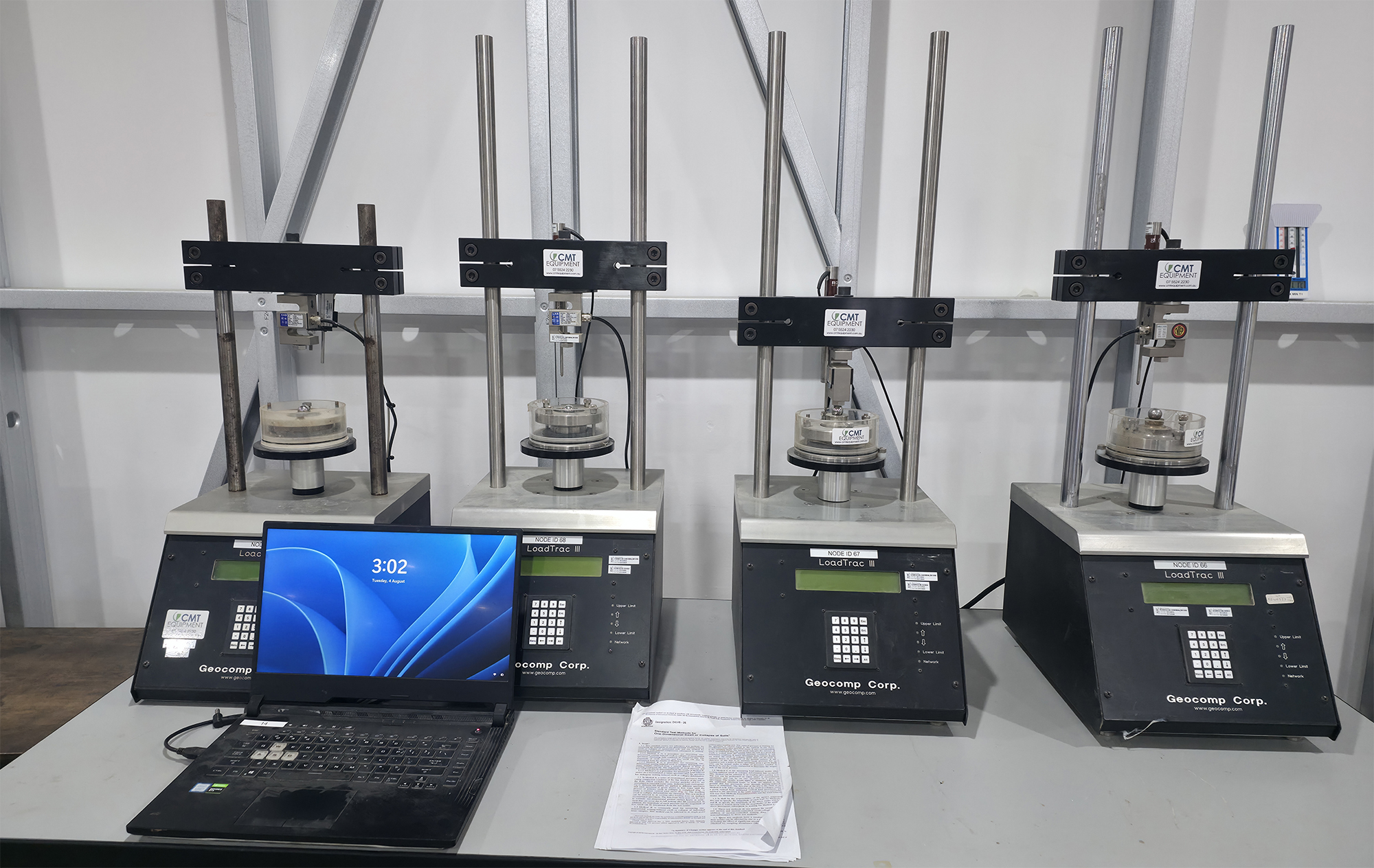

Our NATA-accredited laboratories in Sydney conduct one-dimensional consolidation tests (oedometer tests) strictly adhering to Australian Standard AS 1289.6.6.1 – Methods of testing soils for engineering purposes – Soil strength and consolidation tests – Determination of the one-dimensional consolidation properties of a soil – Standard method.
During the test, an undisturbed or remoulded soil specimen is confined laterally within a rigid ring and subjected to incrementally increasing vertical static loads. For each load increment, the compression of the specimen is measured over time until primary consolidation is complete. The load is typically doubled for each increment.
Test Methods & Standards
| Test | Standard | Typical Load Increments |
|---|---|---|
| Oedometer – One-Dimensional Consolidation | AS 1289.6.6.1 | 12.5–1600 kPa |
Key Geotechnical Parameters Determined
The consolidation test yields several crucial parameters for geotechnical design:
| Parameter | Symbol | Description |
|---|---|---|
| Coefficient of Consolidation | $c_v$ | Indicates the rate at which consolidation (settlement) occurs. Measured in $m^2/year$. |
| Coefficient of Volume Compressibility | $m_v$ | Represents the compression of a soil layer per unit of original thickness per unit increase in effective stress. Measured in $m^2/kN$. |
| Preconsolidation Pressure | $\\sigma_p'$ or $p_c'$ | The maximum past effective vertical stress that the soil has sustained. Helps determine if soil is normally consolidated or overconsolidated. |
| Compression Index | $C_c$ | The slope of the virgin compression line on a void ratio vs. log effective stress plot; indicates the compressibility of normally consolidated soil. |
| Recompression Index (or Swell Index) | $C_r$ or $C_s$ | The slope of the recompression/swelling line on a void ratio vs. log effective stress plot; indicates the compressibility of overconsolidated soil. |
| Void Ratio | $e$ | The ratio of the volume of voids to the volume of solids in the soil. |
Applications of Consolidation Test Data
Data derived from consolidation testing is indispensable for a wide range of geotechnical engineering projects, including:
- Design of foundations for buildings, bridges, and industrial facilities.
- Analysis and design of earth embankments for roads, railways, and dams.
- Assessment of settlement for land reclamation projects and surcharge fills.
- Design of retaining walls and other earth-retaining structures.
- Evaluation of ground improvement techniques.
