Benkelman Beam Testing

Atlas Engineering and Technology Group provides expert Benkelman Beam Testing services across Sydney. This test is essential for evaluating the structural capacity of flexible pavements and unbound granular materials. It is a crucial component of our Earthworks Compaction testing services, helping ensure the longevity and performance of your infrastructure projects.

Understanding Benkelman Beam Testing

The Benkelman Beam test is a widely accepted, nondestructive method for measuring a pavement surface's deflection or rebound under a standard wheel load. It provides valuable data on the pavement's structural condition, its ability to withstand traffic loads, and the effectiveness of underlying support layers, including compacted earthworks.

How Does it Work?

The test utilises a simple yet effective apparatus and procedure:

Apparatus:

  • A lightweight, portable beam (the Benkelman Beam) pivoted at one end.
  • A dial gauge is mounted on the beam to measure vertical movement with high precision.
  • A loaded test vehicle, typically a truck with a known, standardised axle load (e.g., 80kN or as specified).

General Procedure:

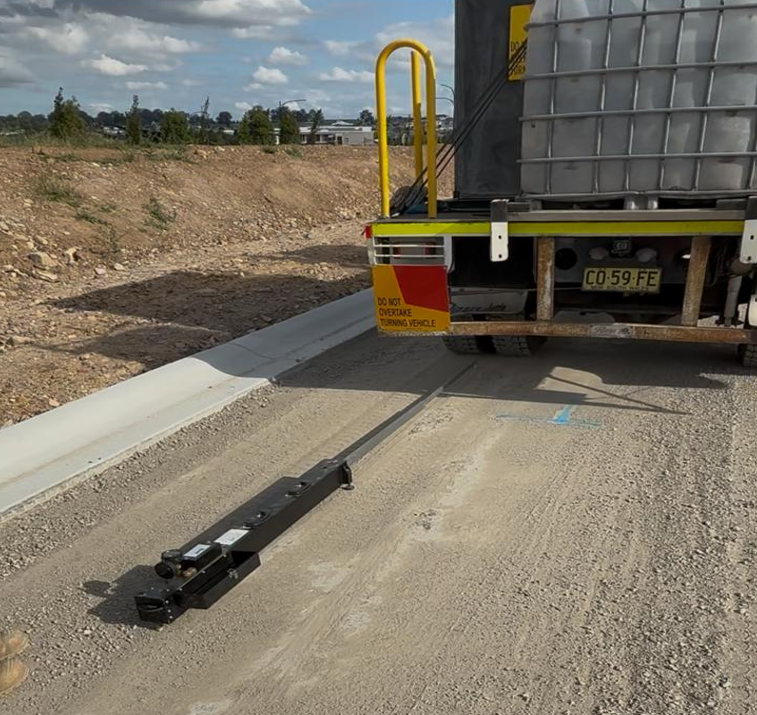

  1. The tip of the Benkelman Beam is carefully placed between the dual tyres of the stationary test vehicle's rear axle.
  2. An initial reading is taken on the dial gauge once the beam has stabilised.
  3. The vehicle is then driven slowly forward a set distance (e.g., 2.7 metres for initial rebound or further for residual deflection).
  4. Once the pavement surface has rebounded from the load, the dial gauge takes a final reading (or series of readings for rebound bowl analysis).
  5. The difference between the initial and final readings represents the pavement deflection under the applied load. This process is repeated at regular intervals along the pavement section being assessed.

Applications of Benkelman Beam Testing

Benkelman Beam testing is versatile and provides critical information for various purposes within earthworks and pavement engineering:

  • Pavement Evaluation: Assessing the structural integrity and remaining life of existing roads, highways, and airfield pavements.
  • Subgrade and Base Course Assessment: This involves evaluating the stiffness and bearing capacity of unbound pavement layers (base, sub-base) and underlying subgrades. It is particularly important for verifying the performance of compacted earthworks prior to sealing or further pavement construction.
  • Rehabilitation Design: Providing essential deflection data for the design of pavement overlays, stabilisation, or other rehabilitation strategies.
  • Quality Assurance: Verifying the performance and uniformity of newly constructed or rehabilitated pavement layers against design specifications.
  • Identifying Weak Areas: Pinpointing specific locations within a pavement structure or earthworks formation that exhibit excessive deflection and require further investigation or remedial work.
  • Monitoring Pavement Performance: Tracking changes in pavement deflection over time to assess deterioration rates.

Why Choose Atlas Engineering for Benkelman Beam Testing in Sydney?

At Atlas Engineering and Technology Group, we are committed to delivering accurate, reliable, and timely Benkelman Beam testing services tailored to your project needs in Sydney.

  • Experienced Technicians: Our team comprises highly skilled and certified professionals extensively trained in conducting Benkelman Beam tests according to Australian Standards and best practices.
  • Accurate & Calibrated Equipment: We utilise meticulously maintained and calibrated Benkelman Beam apparatus and associated equipment to ensure the precision and reliability of our deflection measurements.
  • Strict Standards Compliance: All testing is performed per relevant specifications, including Austroads Guide to Pavement Technology Part 8, Transport for NSW (TfNSW) test methods, and other client-specific requirements.
  • Comprehensive Reporting: We provide clear, concise, and detailed reports that present the test data, analysis (including characteristic deflections), and interpretation, offering valuable insights for your project decisions and design considerations.
  • Local Sydney Expertise: With extensive experience working on diverse projects across the Sydney metropolitan area and New South Wales, we possess a deep understanding of local geological conditions, materials, and construction challenges.
  • Integrated Service: As part of our comprehensive geotechnical, environmental, and testing services, Benkelman Beam testing can seamlessly integrate with other site investigation and material testing requirements for earthworks and pavements.

Our Benkelman Beam Testing Services

Atlas Engineering offers a complete suite of Benkelman Beam testing services, including:

  • On-site pavement deflection testing for various project types.
  • Testing of subgrade, sub-base, and base course layers during construction.
  • Determination of rebound deflection and, where required, deflection bowl parameters.
  • Calculation of characteristic surface deflection.
  • Data analysis and interpretation to assess pavement condition or layer stiffness.
  • Detailed reporting suitable for design, verification, and asset management.
  • Consultation to discuss results and their implications for your earthworks or pavement project.
